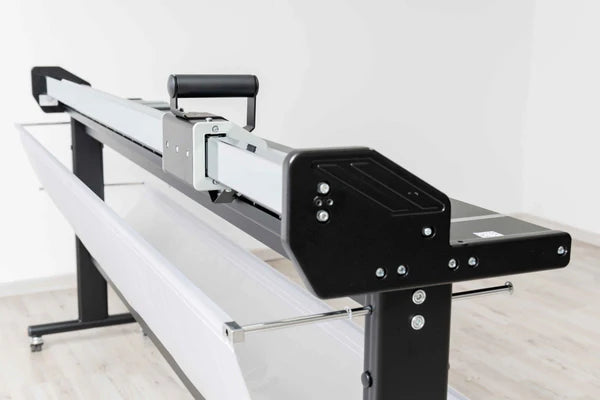

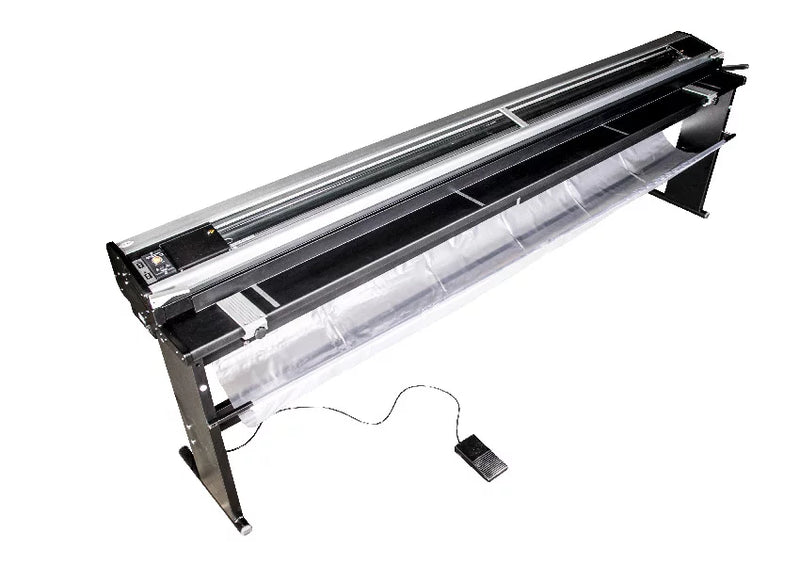

Electric Professional Paper Cutter
ELECTRO STRONG TRIM professional electric paper cutter made in Italy to cut art board, banner, cardboard, acrylic film, vinyl, jute, leather, magnetic film, photo-film, cardboard, paper and photo-paper.
Electro Strong Trim has a strong cutting head with double hardened steel rotating blade and painted stainless steel fixed blade mounted on a reinforced cutting table. It is designed to cut flexible materials up to 4.5 mm thanks to its carriage with variable speed and bi-directional.
The worktable is lighted up to make the operator's job easy. Powder-coated metal parts ensure maximum resistance to cuts and scratches. A laser indicates the precise cutting point of the carriage.
Main Features
- Steel worktop with transparent plastic paper collecting curtain
- The worktable is powder-coated
-
Equipped with LED lamp inside the cutting area
- Fixed blade in painted stainless steel, mounted on a reinforced cutting table
-
Adjustable speed
-
Pedal start
-
Containment bracket for the correct positioning of the material to be cut
-
Strong cutting head with double rotating blade
- Laser ray to see the cutting line
-
Material fixing bar
Optional
Materials
- Art Board
- Card
- Cartoncino
- Acrylic Film
- Vinyl
- Jute
- Leather
- Magnetic Film
- Cardboard
- Paper
- Photo-Film
- Photo-paper
Technical Data
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
|
Datasheet
|
165
|
210
|
260
|
320
|
|
Max Cutting Thickness
|
4,5 mm
|
4,5 mm
|
4,5 mm
|
4,5 mm
|
|
Cutting length
|
165 cm
|
210 cm
|
260 cm
|
320 cm
|
|
Length
|
224 cm
|
274 cm
|
324 cm
|
384 cm
|
|
Width
|
50 cm
|
50 cm
|
50 cm
|
50 cm
|
|
Height
|
102 cm
|
102 cm
|
102 cm
|
102 cm
|
|
Worktable height
|
87 cm
|
87 cm
|
87 cm
|
87 cm
|
|
Weight
|
59 kg
|
72 kg
|
85 kg
|
97 kg
|
|
Stand Weight
|
32,5 kg
|
36,5 kg
|
39 kg
|
42,5 kg
|
|
Cutting Speed (Adjustable)
|
0,45 m/sec - 1,48 ft/sec
|
|
Power Consumption
|
230V/50Hz-110V/60Hz
|
