Neolt Factory Cutters

Neolt factory is a family business based in Italy currently is a world leader in the sale and production of trimmers, specialized in finishing equipment for printing, visual communication and many industrial businesses, including laminators, multifunctional vertical cutters, folding and welding systems. Neolt Factory's sales network touches the major world markets and is constantly expanding with new partners.

Vertical Substrate Cutters

Sword Vertical Cutting Machine

Sword Vertical Cutting Machine

  •  Millimetric base for tool positioning
  • Light body frame but strong and reliable
  • Quick tools change: with two units always installed and a third optional
  • Tool for dibond and aluminium cut
  • V-cut tool for cardboard angular cut at 60°and 90°
  • Diamond wheel for glass engraving.
  • Oversize and strong support base to feed big dimensions panels
  • Available in three heights: 165, 210 or 310 cm

Materials

Fixed Blade 1

Thickness from 1 to 30 mm

  • Cardboard
  • Foam mount
  • Gato foam
  • Spongy
  • Media
  • Expanded polhyurethane
  • Plastic from 0,5 mm
  • Films
  • Plastic alveolar
  • Reboard
Fixed Blade 2

Thickness from 1 to 10 mm

  • Leather
  •  Forex
  •  Plastic from 0,5 mm cut in two steps: from down to up and vice versa
Enquire
Sword Els Electric Cutting Machine

Sword Els Electric Cutting Machine

  • Millimetric base
  • Light body frame but strong and reliable
  • Quick tools change: with two units always installed and a third optional
  • Two turnable blades: one moving and one fixed for forex and foam
  • Automatic motorized spindle for dibond and Plexiglass cut
  • Media fixing clamp
  • Carriage speed control
  • Oversize and strong support base to feed big dimensions panels
  • Available in three heights: 210, 250 or 310 cm
  •  V cut for dibond
Enquire

Custom-built, but accessible to many

Absolute manufacturing excellence, Italian design, uncompromising power, high cutting precision: this is the promise of Sword ELs for modern sign makers, stand builders and industrial and artisan businesses with high cutting volumes of rigid and special substrates. All with a keen eye on the budget and with the highest levels of investment protection.

Multi-tool, multi-material, ultra-fast and XXL

Sword ELs is characterized by a light and elegant, but at the same time robust and reliable body. The unique design of the cutter equipped with millimetric ruler allows a safe and quick tool change, with the possibility of having two fixed blades always in position for the cutting of carboards and Forex, alongside with to a third motorized 30.000 rpm tool for cutting methacrylate and Dibond up to 5 mm thick, with creasing function for folding-only requirements. Available in 2100, 2500 and 3100 mm heights, Sword ELs can reach speeds up to 24 meters per minute, and thanks to the solid and extra large base it can accomodate large size boards.

Bench Cutting Machines

Electropower Trim Cutting Machine

Electropower Trim Cutting Machine

  • Steel working plane with sheet holder made of transparent plastic for easy reference
  • The working plane is painted with an epoxydic powder
  • Provided with lamp over cutting area
  • Fixed blade in painted stainless steel, mounted on a reinforced cutting plane
  • Cutting starter from pedal or with aluminum profile on the cutting table
  • Blade holder carriage sliding on a square bar, suitable for banner, vinyl media
  • The cutter is supplied with a containment bracket for the correct positioning of the material for cutting
  • Open rear aluminium profile, to allow cutting large format materials
Enquire
Main Features

Main Features

Electro Power Trim has a robust rotating blade cutting head in hardened steel, mounted on a square sliding bar, and a fixed blade in painted stainless steel mounted on a reinforced cutting table. Among the advanced features the horizontal output of the material on the back or into the waste collection container. The metal parts are painted with epoxy powders providing maximum resistance to cuts and scratches. The standard version includes a stand for ground positioning with adjustable feet, the container for waste collection, the adjustable guides, a cutting-line fluorescent wire and the lamp for lighting the cutting area. The sheet holder is also included in the 300 and 360 versions.

Enquire
Strong Trim Cutting Machine

Strong Trim Cutting Machine

  •  Blade holder carriage sliding on bearings
  •  Double Rotary blade in stainless steel
  •  Metallic parts varnished with epoxydic powder
  •  The cutter is supplied with two containment brackets for the correct positioning of the material for cutting
Enquire
Main Features

Main Features

Strong Trim is equipped with a cutting head with dual rotating blade in hardened steel, a fixed blade in painted stainless steel mounted on a rectangular sliding bar. The reinforced cutting table painted with epoxy powder guarantees the maximum resistance to cuts and scratches. The sturdy carriage moving on bearings and the bidirectional cutting capability further increase power and versatility. The cutting thickness up to 4.5 mm allows you to easily trim corrugated cardboard, plastics, foams, compact board, sandwiches and many more flexible and rigid materials. The standard version includes a stand for ground positioning, adjustable squares and a container for the collection of waste.

Enquire

XY Cutting Machines

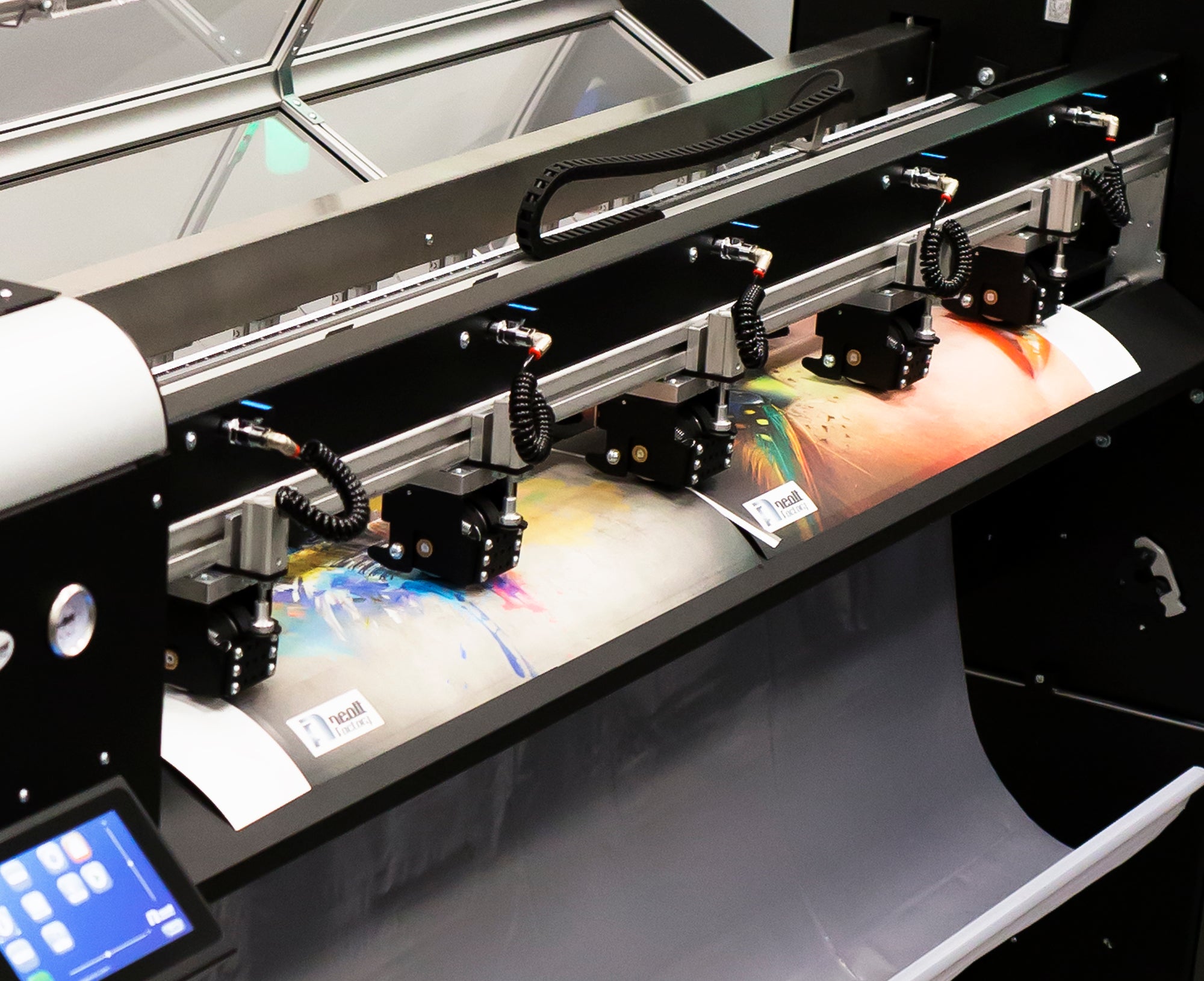

XY Matic Trim

XY Matic Trim

  •  Equipped with multiple cutting units for simultaneous cutting on all four sides
  •  A mobile optical sensor reads the most diverse cutting marks for the accurate cutting
  •  Manual alignment of the prints to be cut in the longitudinal direction, while the vertical cutting units are set manually
  • Speed 500 linear meter/hr
  •  Available for most varied materials, including photo papers, vinyl, paper for inkjet printing, polyester or polycarbonate films up to a thickness of 0.5 mm
  •  Easy loading of the reels
  •  Electronic controls with visual displays allow the operator to easily check any errors or malfunctions
  •  Vertical self-sharpening Blade
  •  Horizontal self-sharpening Blade
Enquire
XY Matic Trim Plus Automatic Cutting Machine

XY Matic Trim Plus Automatic Cutting Machine

  •  LCD Touch Screen display with intuitive and easy-to-use software
  • Auto-alignment
  • Double sensor to read cross-marks
  • Adjustable speed X & Y axis
  • Excellent cutting area visibility
  • Pneumatic Pinch Roll with silent compressor inside the machine
  • Automatic waste collecting system
  • Plug & Play
  • Up to 10 vertical cutting units
  • Double load reel
  • Tower Light
  • New alignment system of vertical cutting units
  • Speed of advancement: 1-50 m/min
  • Horizontal cutting speed: 1-150 m/min
  • Open cutting units (no paper jam)
  • Monolithic machine structure
  • Standard loading jumbo Roll 300mt
  • Up to 20 customizable memories
Enquire

Materials

  • Paper (laminated or encapsulated)
  • Wallpaper
  • Canvas & Polyester (with liner)
  • Reflective material
  • PVC banner
  • Vinyl & Vinyl sticker
  • Display backlit & frontlit
  • Magnetic rubber
  • Polycarbonate in film
Enquire
