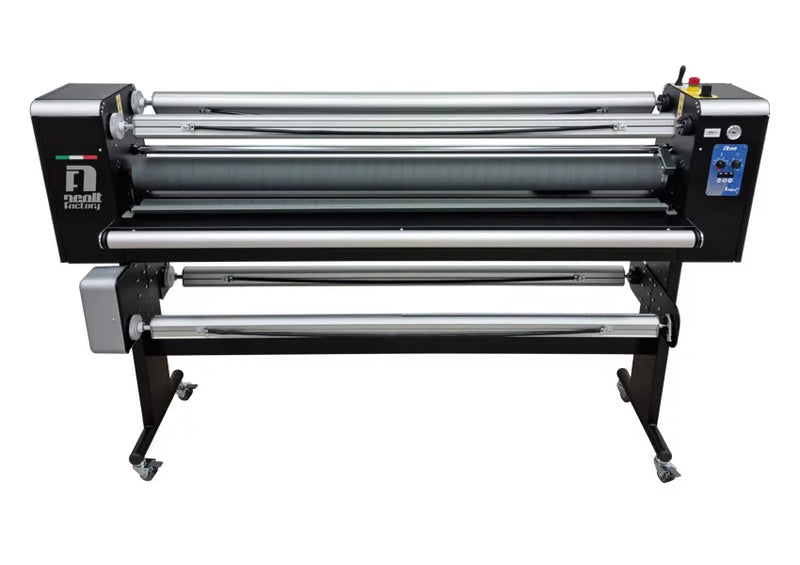

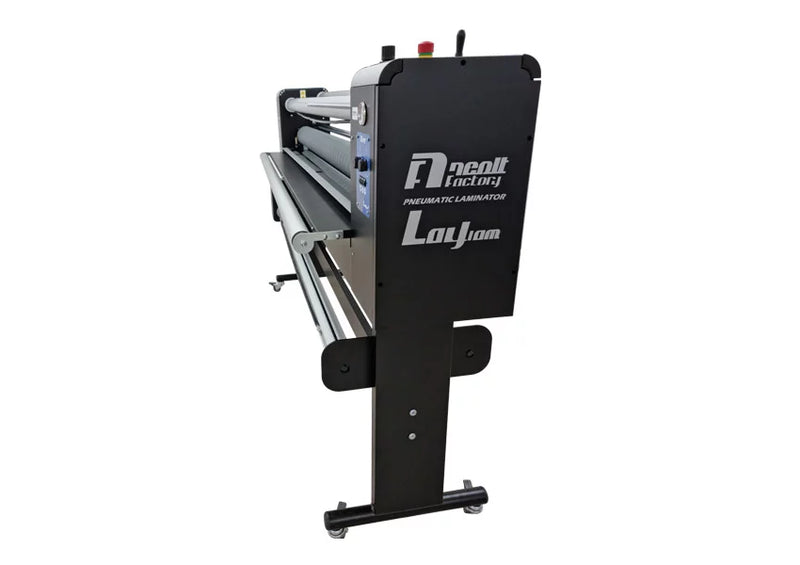

- Pneumatic laminator (compressor not included)
-
Silicone lamination roll for model 120c and rubber roller for model 50c
-
Pneumatic pressure regulation
- Easy pneumatic movement of the roller (up and down)
- Hand Safety Sensor
- Self-adaptable, air pressure system with independent pistons automatically adapts to different thicknesses
- Adjustable stainless steel clutches
-
Speed and temperature adjustable with potentiometer
Optional
Technical Data
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
Dimensions: 215x45xh140 cm
Width: 1650 mm
Speed: 6 m/min
Max lamination thickness: 30 mm
Worktable height: 920 mm
Weight: 200 kg
Consumption: 230v - 50Hz / 110v - 60Hz
Absorption: 7,5A - 1800W
